Project 2- Contextual Fit

Contextual Analysis


Narrative:

Mr. and Mrs. Smith recently hired you to design an addition to their house that was built in the 1960s and passed down to them by Mr. Smith’s father. At the time, the house served its purpose for Mr. Smith, but it now needs an update to serve the purposes for the new owners. With a growing family, Mr. and Mrs. Smith request an expansion that would create a new master bedroom. The couple feels they need more space for themselves and would use the existing bedroom as a nursery for the newborn baby. With both clients being astronomers, they request that the new structure incorporates something that would allow them to enjoy the night sky over the Long Island Sound. Mrs. Smith also wishes to have an exercise room since she does not get much exercise during her long shifts at the lab. These additions would be sure to give the couple a better living experience in their new home.



Rank:

  1. Observatory

  2. Master Bedroom

  3. Exercise Room



Sorting:

Public:                                                            Private:

  • Living Room                                                 Bedrooms

  • Sundeck                                                        Bathroom

  • Kitchen                                                           Nursery

  • Dining Room                                                 Exercise Room

Loud:                                                              Quiet:

  • Living Room                                                  Sundeck

  • Kitchen                                                           Master Bedroom

  • Dining Room                                                 Nursery

  • Exercise Room

High Traffic:                                                  Low Traffic:

  • Living Room                                                  Master Bedroom

  • Kitchen                                                           Nursery

  • Exercise Room

  • Sundeck


Floorplans

render 2.png

Original Smith House

render 1.png

Renovated Smith House

render 3.png

Added Extension

render 4.png
render 5.png

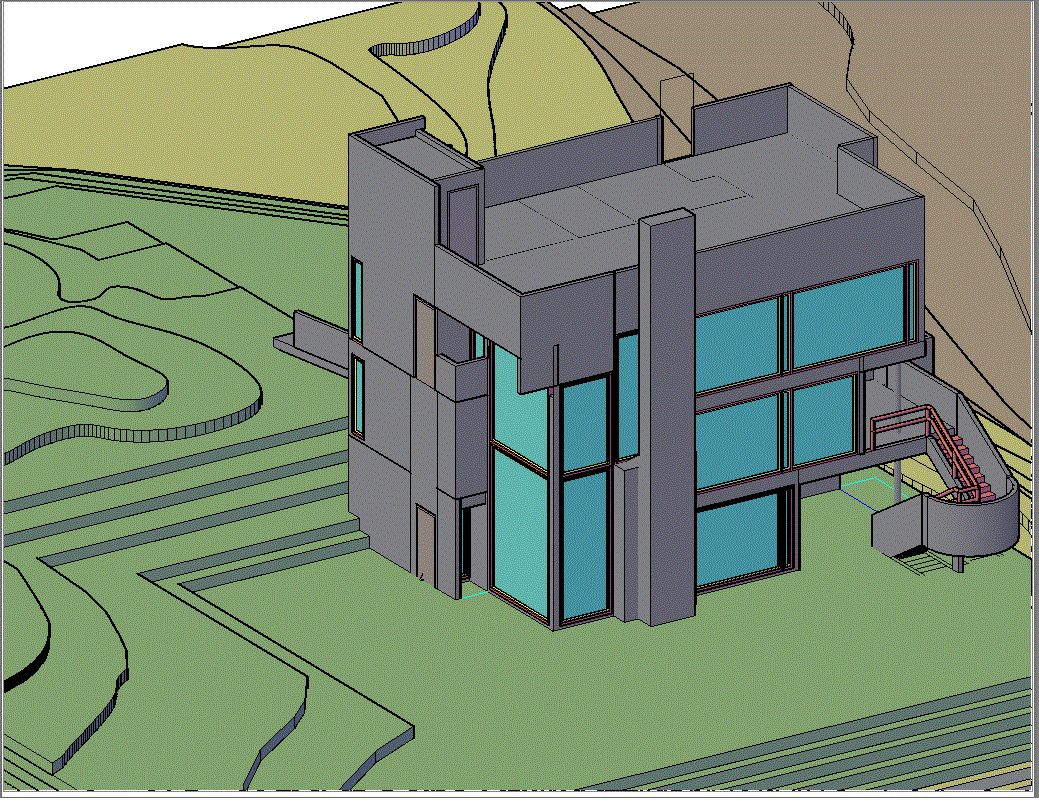

Original Massing Models


Sections

section 2.png
section 1.png

Elevations


North


South


West


East

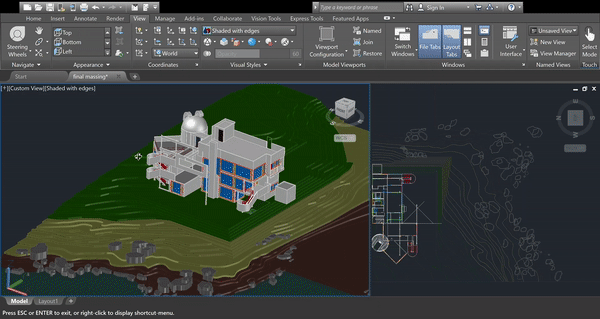

Construction Process


Animation
