Light

Purpose of this project was to design a non-denominational chapel located on Farmingdale State College's campus. The College wants this to be a spiritual place that people of all faiths can worship which is believed to be achieved by the use of light. A site has yet to selected on campus. The building should also be integrated into the fabric of the campus

site plan.png
site plan2.png

Proposed Site Plan

The Proposed site plan sits along a heavily trafficked area and also near two formal spaces. Being that they're formal spaces, it signifies the importance of the chapel. This area is good because there aren't many buildings around that would block light. Being majority south faced, a lot of light would be able to enter during the day. Besides that, the sun will still be able to hit the chapel during the sunrise and sunset. Adding a chapel to this area would not throw off any existing patterns on the campus.

Contextual Analysis


Circulation

Spaces


Function


Forms

natural patterns.png

Natural Patterns

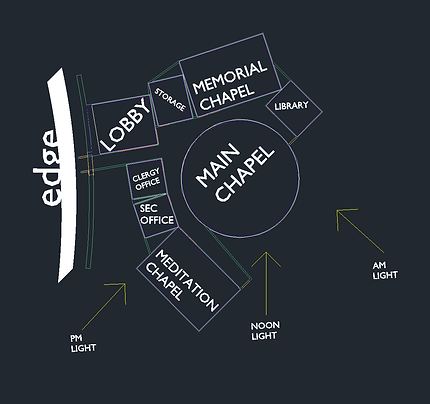

Ranking

  1. ​Main Chapel (PM Lighting)

  2. Meditation Chapel (Noon Lighting)

  3. Memorial Chapel (AM Lighting)

  4. Offices

Light Techniques

light technique models.png

Sample Chapels


Final Chapel Design


Elevations

South


West


 North


East

Lighting Techniques


Sections

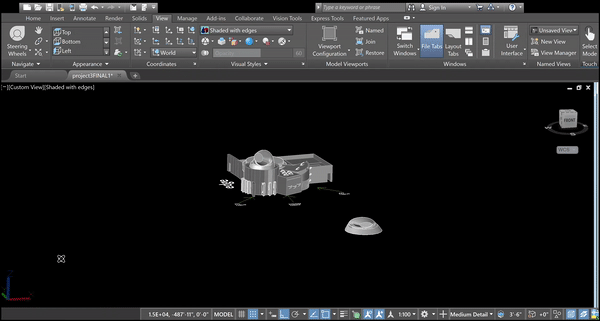

Animation
